Ensure correct identification of terminals before connecting any power sources to avoid short circuits and prevent damage to the vehicle’s electrical system. Use a multimeter to confirm continuity and verify that each contact aligns with its designated function.
Label each conductor according to its function–for example, battery feed, accessory load, or starter relay–to simplify installation and future maintenance. Standard color codes, such as red for power and black for ground, help prevent connection errors.
Secure all fasteners and clamps to maintain stable electrical contact under vibration. Loose connections can cause intermittent operation or arcing, leading to component failure or fire risk.
Test the assembly sequentially by applying low current first, ensuring each position correctly energizes the corresponding system. Observe any abnormal heat buildup or unusual resistance.
Insulate exposed terminals using heat shrink tubing or protective covers to minimize accidental shorts. Maintain at least a few millimeters of clearance from metal chassis parts to avoid unintended conduction.
Document the final configuration by noting terminal positions, wire colors, and connected loads. This record facilitates troubleshooting and helps future modifications or replacements proceed safely and efficiently.
4 Pin Lucas Key Switch Electrical Connection Guide
Verify each terminal’s function before connecting any power source by using a multimeter to check continuity. Assign labels to all leads to match power input, accessory load, and starter relay outputs, reducing the risk of misconnection.
Follow a standard color code for each conductor–for instance, red for live, black for ground, and green for accessories. Secure connections with properly sized crimp connectors or spade terminals, and ensure all screws are tightened to maintain stable contact under vibration.
Test each position sequentially at low current before full operation. Observe voltage across terminals, watch for heat buildup, and confirm that each output energizes the intended component. Cover exposed connections with insulation sleeves to prevent accidental shorts and maintain safe operation.

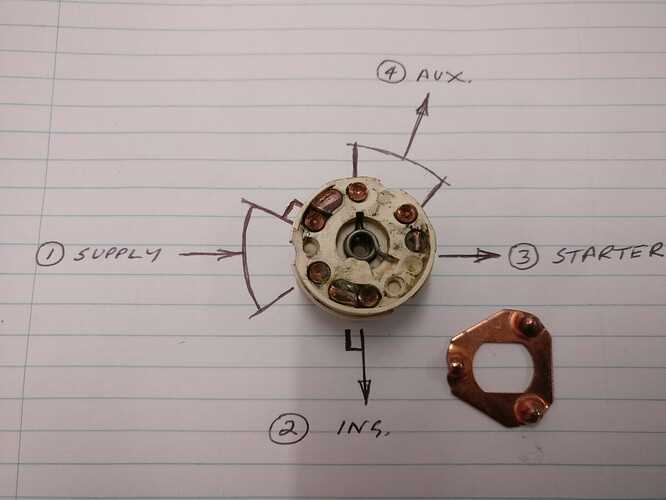

Identifying Terminals and Color Codes on the Key Switch

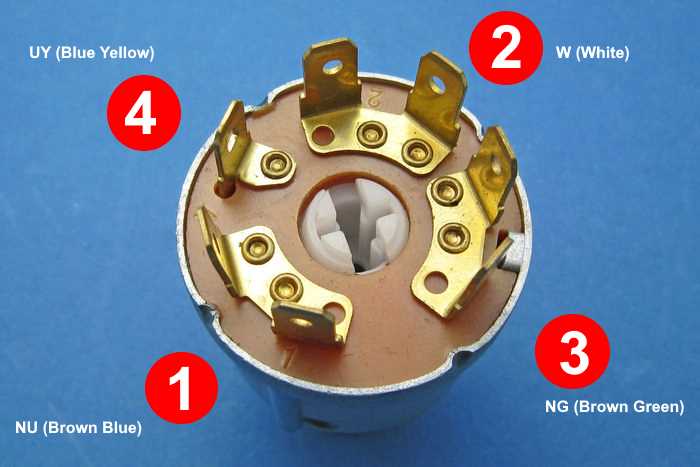

Inspect the rear contact block and locate each terminal marking before attaching any conductor. The power feed from the battery is commonly connected to a red lead, while the ground return typically uses black. Accessory lines often appear in green or yellow. Confirm each path with a multimeter continuity test so the correct terminal energizes the intended system when the rotary control moves between positions.
Apply clear labels to every conductor and match them with the corresponding terminal letters or numbers stamped into the housing. Ensure crimp connectors are firmly attached and insulation is intact along the entire length. Maintain separation between the battery supply lead and accessory lines to reduce heat buildup and accidental contact with metal chassis parts.
