Check the battery pack connections before tracing any cable inside the scooter frame. The compact e-scooter uses a three-battery series pack that produces about 36V DC and feeds a small brushless hub motor through an electronic speed controller. Red conductors carry positive power from the battery pack to the controller input, while black conductors return current to the pack ground.
The controller sits between the battery pack and the hub motor mounted in the rear wheel. Thick phase conductors, usually colored yellow, green, and blue, transfer current from the controller to the motor windings. A separate thin cable bundle connects the Hall sensors inside the hub motor back to the controller board, allowing it to track rotor position and adjust current flow.
Throttle and brake signals use low-current control lines. The throttle handle on the handlebar typically sends a small analog signal through a three-wire cable: power, signal, and ground. When the rider twists the throttle, the signal voltage rises from roughly 1.0V to about 4.2V, telling the controller to increase motor output.
Fuse protection and charging leads connect directly to the battery pack terminals. Charging usually occurs through a DC port mounted on the frame, feeding a charger rated around 42V output for lithium packs used in this scooter model. Correct cable routing and clear identification of motor, controller, throttle, and battery connections helps locate faults such as loose plugs, damaged insulation, or failed connectors.

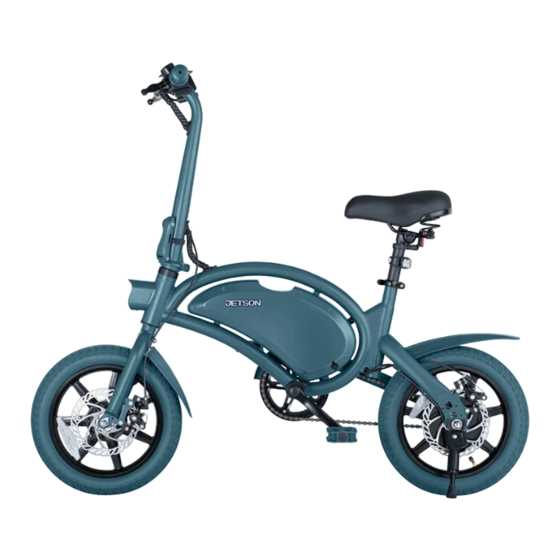

36 Volt Jetson Bolt Wiring Diagram With Battery Controller and Motor Connections
Connect the battery pack output leads directly to the controller input terminals before attaching the hub motor phase cables. The compact scooter power system uses a lithium battery pack rated around 36V nominal and about 42V when fully charged. Two thick conductors leave the battery enclosure: a red positive lead and a black negative lead. These connect to the controller power input through a plug connector located inside the frame compartment.
The controller distributes power to several main components:
- Three phase cables leading to the rear hub motor
- Hall sensor signal harness from the motor
- Throttle signal cable from the handlebar
- Brake cut-off signal line
- Main battery power leads
Motor phase cables normally appear in three colors: yellow, green, and blue. These thicker conductors carry high current from the controller to the brushless hub motor windings. Alongside them runs a smaller multi-wire harness that transmits Hall sensor signals. That harness usually includes five conductors: power, ground, and three sensor outputs that report rotor position to the controller.

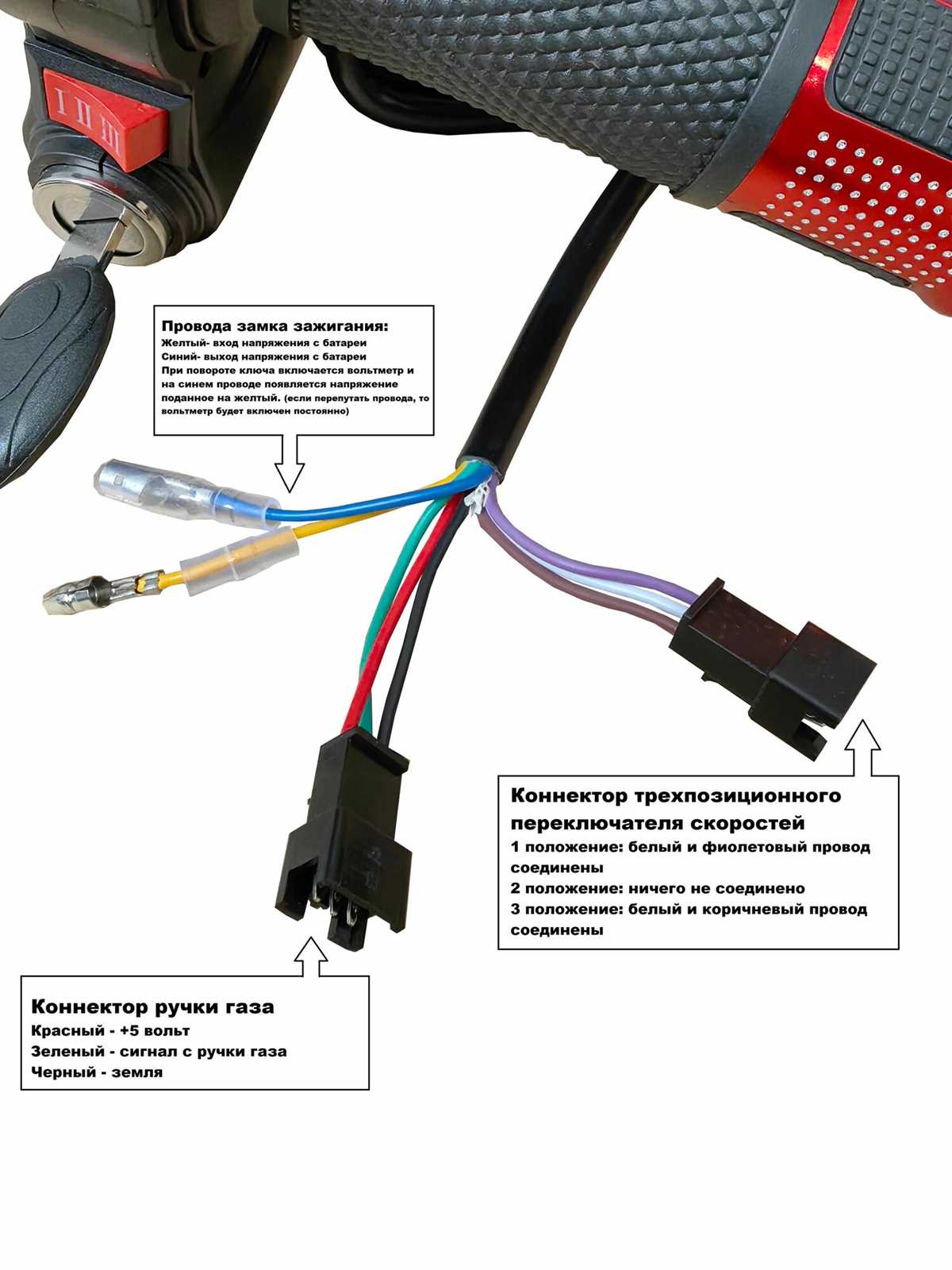

The throttle control uses a three-conductor cable that carries a low-current control signal. Inside this cable are:
- Red conductor supplying about 5V reference power
- Black conductor used as signal ground
- Green or white conductor carrying the throttle signal
When the rider twists the throttle grip, signal voltage typically rises from about 1.0V at idle to roughly 4.0–4.2V at full twist. The controller interprets this change and increases current delivered through the three motor phase leads.
Brake levers often include a safety cutoff switch connected through a two-wire harness. When the brake lever engages, this signal interrupts controller output and stops motor power instantly. This prevents the hub motor from pushing the scooter while braking.
Charging input connects directly to the battery pack through a dedicated port mounted on the frame. The charger supplies around 42V DC, matching the fully charged level of the lithium battery pack used in this scooter model.
All connectors should lock firmly and remain protected from vibration inside the frame cavity. Loose plugs or partially inserted connectors can interrupt phase signals or sensor feedback, producing symptoms such as jerky acceleration, motor stuttering, or failure to start.
Battery Pack Layout and Main Power Cable Routing in Jetson Bolt 36 Volt System
Place the battery pack firmly inside the frame compartment and route the main positive and negative conductors directly to the motor controller without sharp bends. The compact scooter power unit normally uses a lithium battery pack rated around 36V nominal with roughly 42V at full charge. The pack usually sits beneath the seat area or inside the central frame cavity, secured with brackets or foam padding that prevents movement during riding.
Two primary conductors exit the battery enclosure. The red lead carries positive DC power while the black lead returns current to the pack ground. These cables connect to the controller input connector, which distributes power to the drive motor, throttle electronics, and onboard control circuitry. Cable insulation should remain intact along the entire path, especially where the harness passes through frame openings.
Routing should follow structural tubes inside the frame rather than open moving areas. Use cable ties at intervals of roughly 10–15 centimeters so the harness does not rub against metal edges or suspension parts. Abrasion against the frame can eventually expose copper conductors and interrupt the power supply.
The charging connector usually links directly to the battery pack through a short harness. A charger delivering about 42V DC connects through this port and replenishes the lithium cells through the internal battery management system. This management circuit balances individual cell groups and disconnects the pack if voltage drops too low or rises beyond safe limits.
Inspect connectors regularly. Loose battery plugs may cause intermittent power loss, sudden shutdown during acceleration, or flickering dashboard indicators. Firm connectors and properly routed main power leads maintain stable current flow from the battery pack to the controller and drive motor.
