Ensure the main supply is disconnected before attaching the RV connector to prevent accidental shocks or short circuits. Use a multimeter to verify zero voltage at the terminals before handling the cord.
Identify each conductor by its insulation color: black for hot, white for neutral, and green for ground. Secure connections with the correct torque to maintain steady contact under load.
Strip the insulation carefully to expose the bare conductor without nicking the wire. Insert each wire fully into its terminal and tighten the screw until the conductor cannot be pulled free.
After assembly, perform a continuity check between terminals and the corresponding cord ends. Confirm that the ground path is uninterrupted and the hot and neutral lines are isolated from each other to prevent malfunction.
30 Amp RV Power Connector Installation and Safety Guide
Disconnect the main supply before starting installation to avoid electric shock. Use a non-contact voltage tester to confirm no current flows through the connection points.
Identify each conductor by color coding: black for the active line, white for neutral, and green for grounding. Strip the insulation precisely to expose 0.5–0.75 inches of bare copper for secure insertion into terminals.
Secure each connection with the manufacturer-recommended torque. Loose contact may cause overheating, arcing, or intermittent power loss. After assembly, verify mechanical stability by gently tugging each wire.
Perform final safety checks by measuring continuity and insulation resistance. Ensure the ground path is continuous and the active and neutral lines remain isolated. Label the connector for future reference to prevent accidental misconnection.
Identifying Terminals and Color Codes for Proper Connection

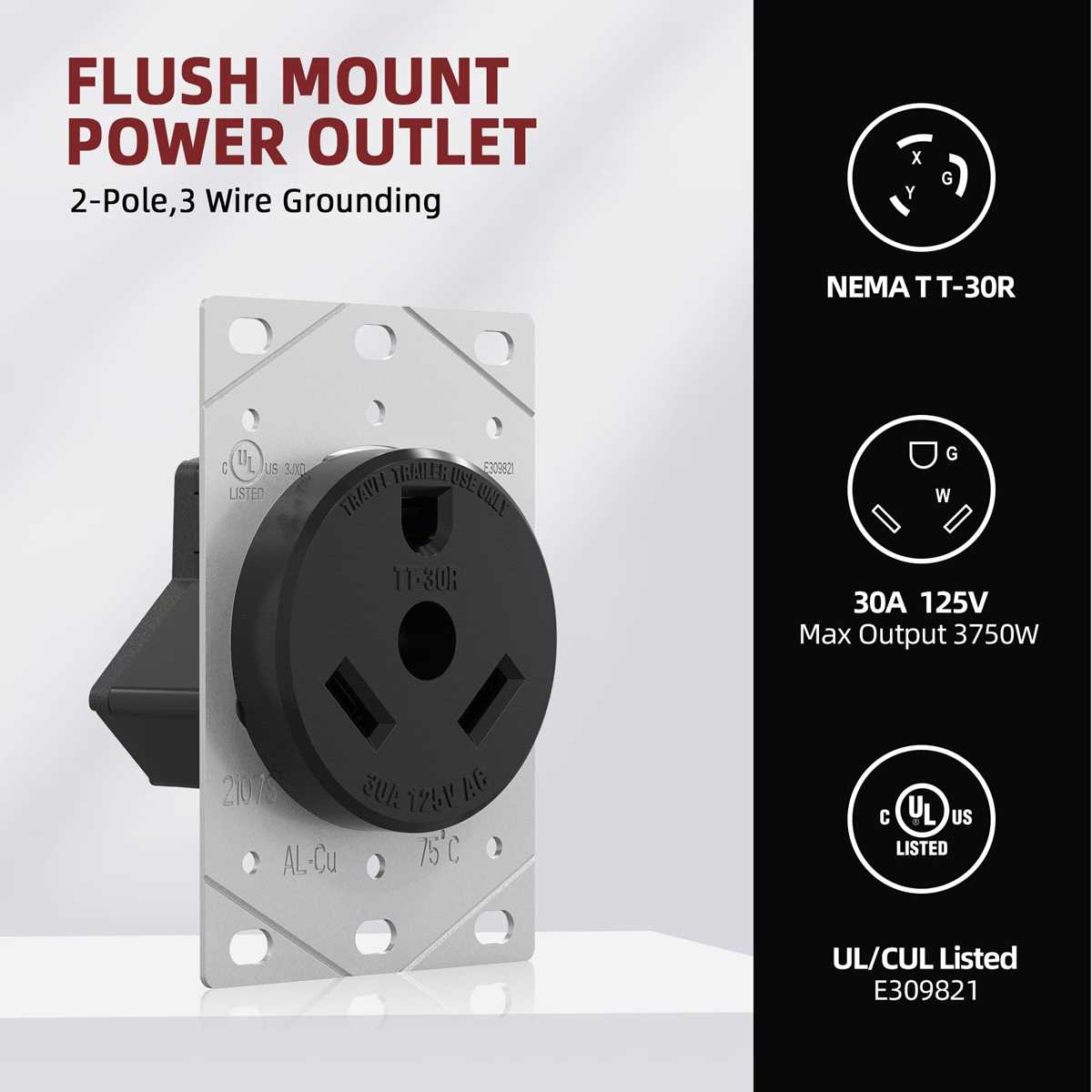

Start by locating the three main terminals on the connector body. Each terminal is marked for its role: line, neutral, and ground. Confirm the markings visually before handling any conductors.
Use color coding to ensure correct placement. Black indicates the active line carrying current, white represents the neutral return, and green provides the protective ground path. Avoid substituting colors to prevent short circuits or equipment damage.
Inspect each terminal for corrosion or physical damage. Clean any oxidation with a fine abrasive tool and ensure screws or clamps are free of debris. A secure surface improves contact stability and reduces resistance.
Preparing Conductors for Insertion
Trim each insulation jacket carefully to expose the recommended length of conductor. Strip no more than 0.75 inches to prevent exposed copper from touching adjacent terminals. Twist stranded conductors tightly before insertion to maintain integrity under torque.
Insert each conductor fully into its assigned terminal. Tighten screws to manufacturer-specified torque values to maintain firm contact. Loose connections can lead to arcing, overheating, and potential fire hazards.
After securing all conductors, perform a continuity test. Verify that the ground path remains uninterrupted and the line and neutral do not short. Label the assembly for future reference to maintain proper identification during maintenance or relocation.
