To properly set up a multi-point light control system, it’s critical to connect the control units in a way that allows adjustment from different locations. Start by identifying the two main types of wiring connections involved: the common terminal and the traveler terminals. These connections allow control over a light source from more than one position.
Ensure you’re working with the correct type of control device, as there are variations in electrical configurations based on the manufacturer. It’s essential to verify that all components match the system’s specifications before proceeding with the installation. This will prevent issues like incorrect voltage readings or malfunctioning switches.
Before starting the connection process, make sure to turn off the power supply to avoid any risk of electrical shock. Once the power is off, the first step is to properly connect the common wire to the source of power and the traveler wires to the terminals on both control units. After the physical connections are secure, double-check for proper grounding and ensure no exposed wires are present. Once you’ve confirmed everything is in place, turn the power back on and test the setup.

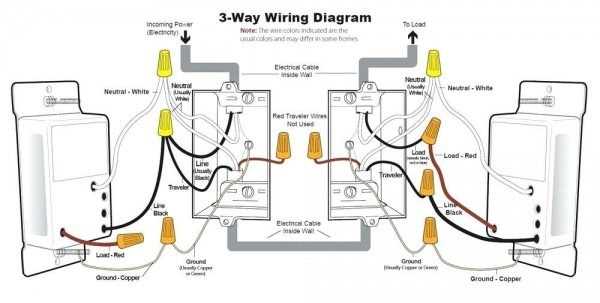

3 Way Dimmer Control Connection Guide
To begin setting up a multi-point light control system, first identify the power source and ensure that it is turned off to prevent any electrical hazards. For this configuration, you’ll need two switches that allow the control of the same light from two separate locations. Start by connecting the main power line to the common terminal of the first switch. This will be the source of your circuit.
The next step is to link the traveler wires. These wires will carry the signal between the two switches, allowing you to control the light from multiple locations. Connect one traveler wire to the traveler terminal of the first switch and the other to the traveler terminal of the second switch. This creates the communication between both units.
After the traveler wires are securely in place, it’s time to connect the load. The load wire should be connected to the common terminal of the second switch. This wire then leads to the light fixture, completing the circuit. Double-check to ensure that all connections are secure and correctly placed to avoid any malfunctioning.
Lastly, make sure the system is properly grounded. The ground wire must be attached to the designated ground terminal of each switch. This is a safety measure that ensures the entire circuit is properly protected against electrical faults.
Once all connections are made and thoroughly checked, turn the power back on. Test the setup by adjusting each switch. The light should now respond to input from either location, allowing full control from both switches. If any issues arise, double-check the wiring and ensure no loose connections exist.
How to Connect a 3 Way Dimmer Switch to Your Light Circuit
Start by ensuring that the power is turned off at the breaker box to avoid any electrical accidents. Use a voltage tester to confirm that the wires are not live. Then, remove the existing switch if replacing one, and strip the wires to expose about 1 inch of copper. You’ll need two traveler wires and one common wire for the connection.
Next, connect the common terminal of the new control device to the live wire coming from the power source. Attach one traveler wire to the first traveler terminal on the switch, and the other traveler wire to the second traveler terminal. These traveler wires allow control from multiple locations. Make sure all the wire connections are secure and the switch is properly mounted.
Finally, connect the load wire to the second switch’s common terminal, which then leads to the light fixture. Attach the ground wire to the switch’s ground terminal for safety. Once all connections are complete, replace the switch cover and restore power to test the setup. The light should now respond to control from either switch, providing smooth adjustment of brightness from both locations.
