Use a stable 5V power supply to ensure consistent operation of the counting module and prevent reset errors during initialization. Connect decoders directly to display units to minimize voltage drops.
Integrate a quartz oscillator rated at 32.768 kHz for precise timing pulses, feeding them into the binary counters to maintain accurate sequence progression over long durations without drift.
Apply pull-up resistors on all input lines to stabilize signal levels and avoid unintended resets caused by floating connections. Ensure ground paths are short to reduce interference.
Synchronize minute increments using a flip-flop stage to trigger each tens and units segment. This prevents skipped counts and ensures the visual display matches elapsed time accurately.
Test the display sequence by running continuous cycles for at least 48 hours to confirm no latch-up or miscounts occur, adjusting capacitor values on timing stages if necessary to fine-tune pulse width.
Building a 24 Hour Digital Clock with Clear Component Connections and Timing Setup
Begin with a stable 5V regulated supply to power the counting modules and display units. Connect each segment directly to avoid voltage drop and ensure consistent illumination across all units.
Use a 32.768 kHz crystal oscillator for timing pulses and feed it into a binary divider to generate one-second intervals. Accurate frequency stabilization prevents drift over long operation periods.

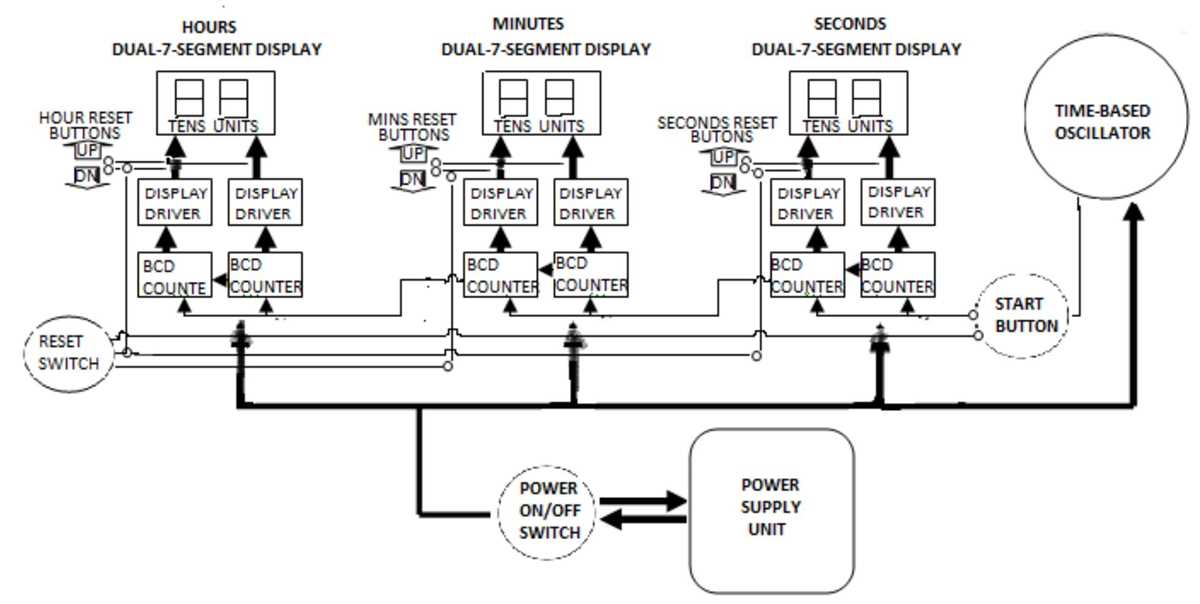

Arrange flip-flops and counters sequentially for tens and units of minutes and seconds. Ensure connections are short and solder joints solid to maintain reliable signal propagation and prevent miscounts.
Add pull-up resistors to all control inputs and reset lines. This reduces floating states that can trigger unwanted resets or timing errors, especially during initial power-up or manual adjustments.
Verify timing accuracy by running continuous cycles for at least 24 hours. Adjust the capacitor values on the oscillator circuit if necessary to fine-tune pulse width and maintain precise timekeeping throughout the operation.
Selecting Components and Power Sources for a 24 Hour Display
Choose stable voltage regulators rated for at least 1.5 times the expected current of the display modules. This ensures minimal voltage fluctuations and prevents flickering in all segments.
Pick low-power display elements such as seven-segment LEDs with high visibility and a forward voltage around 2V for red or 3.2V for blue/green segments. Match the resistor values carefully to balance brightness across all digits.
Power supply selection:
- Use a regulated 5V DC adapter for continuous operation.
- Include a backup coin cell or rechargeable lithium unit to maintain settings during outages.
- Ensure the adapter can handle peak current when multiple segments light simultaneously.
Capacitors and decoupling: Install 100μF electrolytic and 0.1μF ceramic capacitors near the supply pins of each counter and display module. This filters high-frequency noise and prevents resets caused by transient spikes.
Test all components together before final assembly. Confirm that pulse generators, display drivers, and power sources interact without voltage sag or signal distortion, ensuring continuous and accurate performance over long periods.
