Locate the main connector behind the dashboard to ensure correct linking of your sound system. Identify the colored leads: yellow typically carries constant power, red handles switched ignition, and black serves as the grounding point. Confirm each wire’s function using a multimeter before attaching any terminals.
Separate the speaker circuits carefully. Front and rear channels often share a common plug but are coded by color bands. White and gray wires usually correspond to left and right front outputs, while green and purple guide the rear channels. Maintain the factory orientation to prevent reversed audio signals.

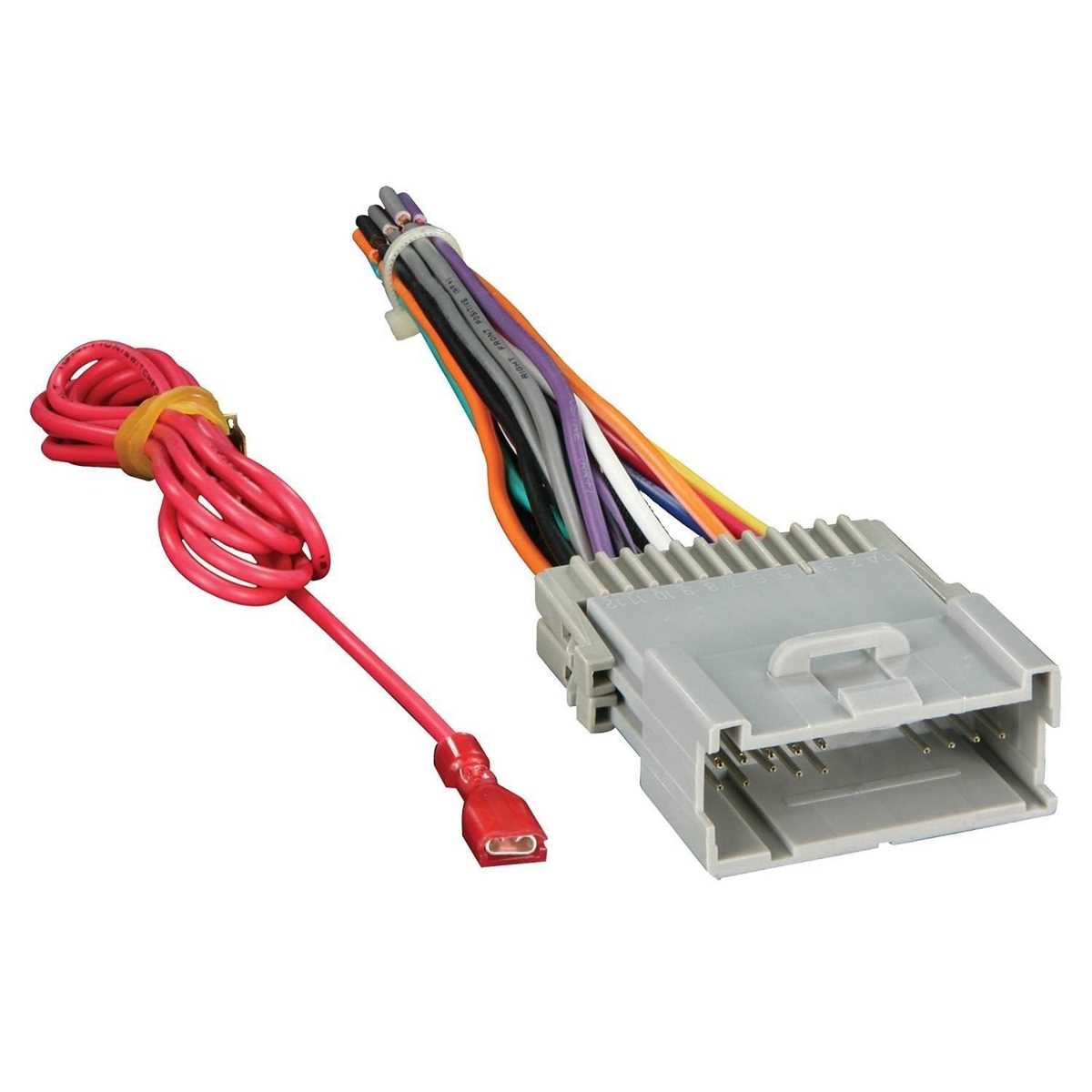

For aftermarket stereo units, match the plug pins to the original harness using a pin chart specific to your truck’s make and model. Crimp or solder connections for a stable electrical path. Insulate each joint with heat-shrink tubing to avoid short circuits and reduce vibration interference during motion.
Check the antenna lead alignment if radio reception is weak. Some connectors require a twist-lock or push-fit approach, ensuring no tension on the cable. Verify continuity from the dashboard port to the receiver module to avoid troubleshooting errors later.
Once all terminals are secure, test the system at low volume. Confirm each speaker responds appropriately, and observe that memory settings retain power after the ignition is off. Correct initial setup prevents frequent disconnects and preserves the integrity of factory-installed electronics.
2004 Silverado Audio Connector Layout
Connect the yellow lead directly to the battery feed for uninterrupted power supply. This wire controls memory functions and ensures settings persist after engine shutdown.
Attach the red conductor to the ignition line only. This triggers the unit to power on simultaneously with the vehicle’s start sequence.
The black strand should always go to a solid ground point on the chassis, preferably near the dashboard frame, to prevent noise interference and minimize static.
Blue/white wires are reserved for amplifier activation. Ensure this connection goes to the remote trigger output if an external amp is installed.
Speaker connections follow a strict color code: white and white/black for front left, gray and gray/black for front right, green and green/black for rear left, and purple and purple/black for rear right. Crossed connections lead to reversed polarity and distorted sound.
Do not mix preamp output lines with speaker feeds. RCA outputs require shielding and should run separate from high-current wires to avoid hum loops.
Test each line with a multimeter before final installation. Voltage presence on the red and yellow leads confirms proper power routing, while continuity checks on speaker wires prevent shorts.
Secure all connectors with locking clips or zip ties to prevent vibration-induced disconnections. Avoid over-tightening, as stress on terminals can lead to intermittent failures over time.
Identifying Wire Colors and Their Functions
Yellow cables deliver constant battery power; they maintain memory settings for the audio unit. Direct connection to the fuse box ensures uninterrupted voltage even when the ignition is off.
Red leads handle switched power, activating the system only when the ignition is engaged. Connecting this incorrectly can cause the unit to drain the battery.
Black cords are grounding points. Secure attachment to the chassis or designated grounding terminal eliminates noise and prevents electrical faults.
Speaker Connections
- White and white with black stripe correspond to front left speakers, positive and negative respectively.
- Gray and gray with black stripe link to front right speakers.
- Green and green with black stripe serve the rear left channel.
- Purple and purple with black stripe connect the rear right channel.
Blue wires often control amplifier turn-on or power antenna triggers. Verify with a multimeter before linking to avoid unwanted surges.
Orange wires manage illumination signals. Matching them to dash lighting circuits ensures brightness levels adjust with the vehicle’s controls.
Brown cords occasionally serve as mute or phone interface lines in some models. Testing continuity before final installation prevents operational errors.
