Check the factory radio harness pin layout before connecting a new head unit. The pickup produced in the early 2000s uses a standard dashboard connector with separate power, illumination, ground, and speaker leads. Identifying each conductor by color prevents reversed polarity, blown fuses, and noise in the audio system.
The factory audio unit receives constant 12-volt power through a yellow supply lead connected to the vehicle battery line. A red accessory lead activates the receiver when the ignition switch moves to ACC or RUN. The black conductor serves as chassis ground, usually attached to the metal dash frame. Proper grounding reduces electrical noise generated by the alternator and ignition components.
Speaker connections follow a color-coded scheme. Front left output commonly uses orange with light green stripe for positive and light blue with white stripe for negative. Front right output typically uses white with light green for positive and dark green with orange stripe for negative. Matching polarity keeps cone movement synchronized and maintains balanced sound between channels.

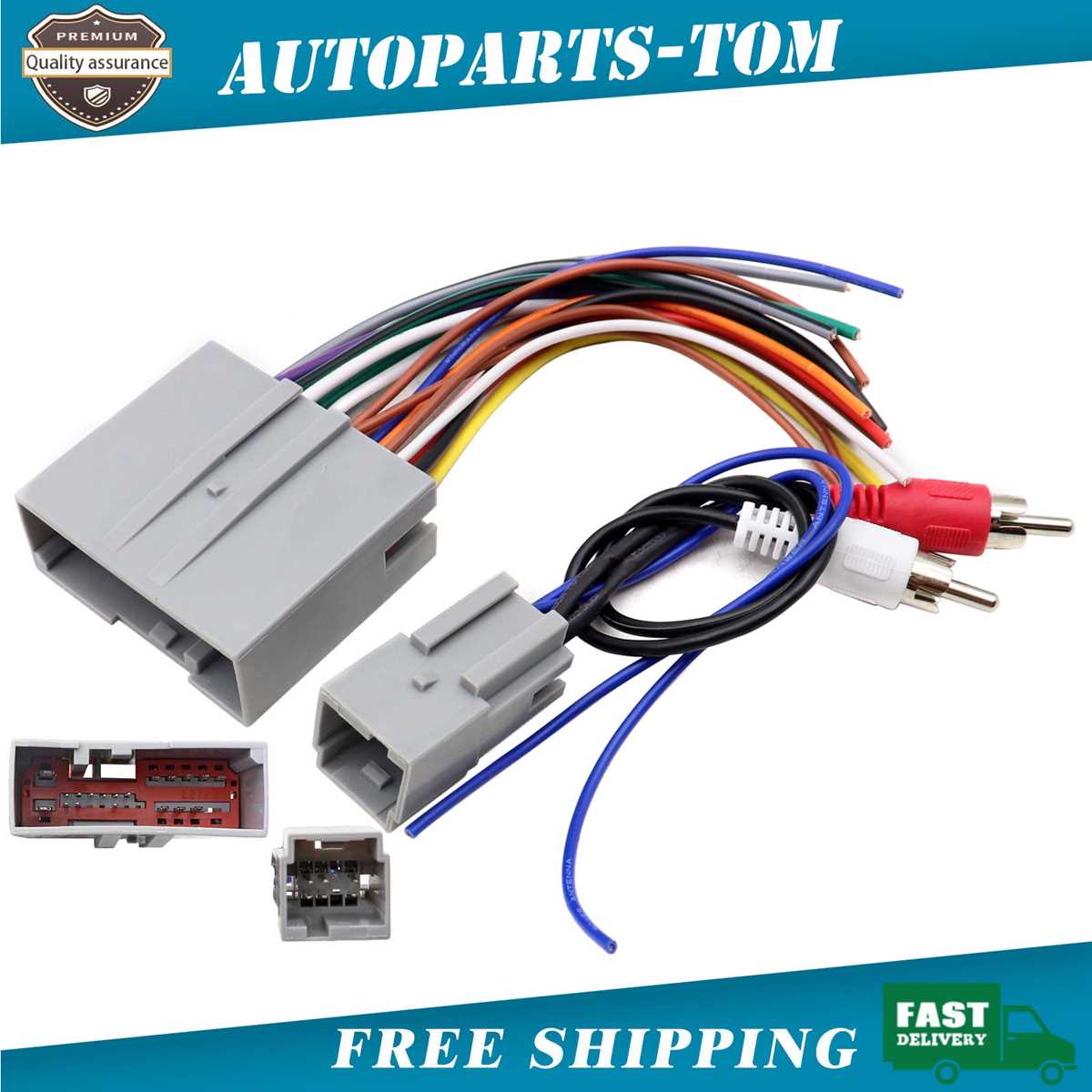

Rear door speakers connect through separate pairs routed along the cabin harness. One pair usually uses tan with yellow stripe and gray with light blue stripe, while another pair uses orange with red stripe and brown with pink stripe. When installing an aftermarket receiver, adapters designed for this truck generation plug directly into the original connector, avoiding cutting the factory harness.
2004 Ford F150 stereo wiring diagram with radio harness and speaker wire colors
Verify each conductor in the dashboard connector using the factory color scheme before installing a new head unit. The pickup from this generation uses a rectangular plug behind the center dash panel. Power, speaker outputs, and lighting signals are separated into dedicated leads that can be matched to aftermarket receivers through a plug-in adapter.
The permanent power feed usually appears as a yellow 12-volt line. This conductor keeps station memory and clock settings active. Measure voltage with the ignition switched off; the reading should stay near battery level, usually around 12.4–12.8 volts. If voltage is missing, check the interior fuse panel supplying the radio memory circuit.
The ignition controlled supply often appears as a red lead. It becomes active only when the key moves to ACC or RUN. Connect this line to the receiver accessory input so the audio unit powers down when the key is removed. The black conductor serves as chassis ground and should be attached firmly to metal behind the dashboard frame.
Front speaker connections
The left front door channel normally uses orange with light green stripe for positive output and light blue with white stripe for negative. The right front channel commonly uses white with light green stripe as positive and dark green with orange stripe as negative. Maintaining correct polarity keeps both speakers moving in the same direction, preventing weak bass.
Each pair runs through the door harness and terminates at 6×8 inch speakers installed inside the door panels. Resistance measured across each pair typically reads close to 4 ohms, matching the impedance expected by the factory audio unit.
Rear speaker connections
The rear left channel generally uses tan with yellow stripe for positive and gray with light blue stripe for negative. The rear right channel frequently uses orange with red stripe for positive and brown with pink stripe for negative.
These leads run along the cabin floor harness toward the rear doors or cab panels depending on body style. Use a continuity tester after disconnecting the battery to confirm each pair before attaching a new receiver.
Illumination and dimmer signals also appear in the dash connector. A light blue with red stripe lead typically carries the panel lighting signal, allowing the radio display brightness to follow the instrument cluster when the headlights are turned on.
Radio harness pinout and wire color identification in 2004 Ford F150
Identify each pin in the dashboard audio connector using the factory color code before attaching a replacement head unit. The rectangular plug behind the center console typically carries a yellow constant battery line, a red ignition-controlled supply, and a black chassis ground. A light blue with red stripe conductor provides dash illumination input, allowing the receiver display to dim with the instrument panel lighting. Speaker outputs are grouped as color-striped pairs, each pair representing positive and negative leads for a door speaker channel.
Confirm conductor roles with a multimeter: the battery feed should show about 12 volts at all times, the accessory lead becomes active only with the key in ACC or RUN, and the ground wire must show continuity to the metal dashboard frame. Front speaker pairs usually appear as orange with light green stripe and light blue with white stripe for the left channel, while white with light green stripe and dark green with orange stripe serve the right channel. Rear channels commonly use tan with yellow stripe paired with gray with light blue stripe, and orange with red stripe paired with brown with pink stripe. Matching polarity during connection prevents phase cancellation and preserves balanced sound between door speakers.
