Locate the main power and ground lines before attempting any connector work. The positive feed is typically red, while the grounding lead is black, ensuring proper voltage flow for the stereo module.
Match each speaker lead carefully to its corresponding terminal. Front and rear outputs are often color-coded in pairs, with one wire carrying the positive signal and the other negative, preventing phase issues and distortion.

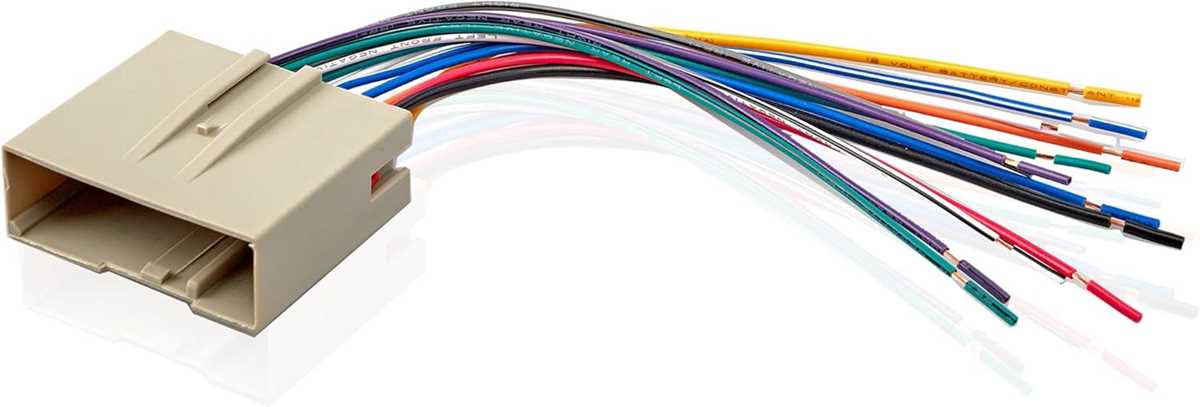

Use a multimeter to verify continuity across harness connectors. Checking resistance values helps detect broken strands or poor contacts that could cause intermittent sound loss or static interference.
Secure all connections with crimp or solder joints and protect them with heat shrink or electrical tape. This prevents accidental shorts and keeps the system stable during vehicle movement or vibration.
Test the audio unit after each connection step. Play a signal through each channel to confirm proper polarity and output levels, reducing the risk of damaging speakers or amplifiers during final installation.
Vehicle Audio Connection Guide
Identify the main power source behind the dashboard console before removing any panels. The constant feed is usually red, while the ignition-switched line is yellow, ensuring that the system powers on only with the ignition key.

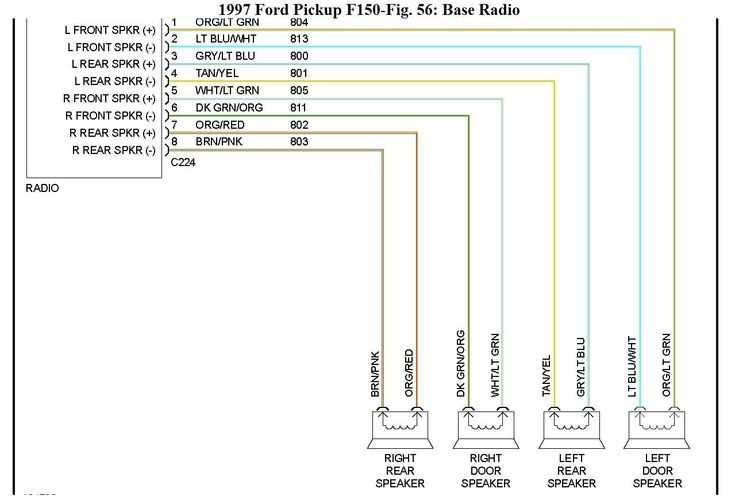

Trace each speaker line individually from the harness to the amplifier or head unit. Front and rear channels are often grouped in color-coded pairs, with positive and negative leads marked to prevent phase reversal and uneven sound output.
Connector Verification and Testing
Use a continuity tester or multimeter to confirm each circuit. Measuring resistance between terminals can uncover broken wires or loose contacts, which could otherwise lead to static or intermittent audio interruptions.
Final Assembly and Safety
Secure all splices with crimping or soldering and insulate them with heat shrink tubing. After assembly, run a test signal through each speaker to confirm correct polarity, consistent volume levels, and absence of interference before closing the dashboard panels.
Identifying Wire Colors and Functions
Match each lead to its intended circuit before connecting components. Typical color assignments include:
- Red – constant 12V power
- Yellow – switched ignition power
- Black – ground
- White and white/black – front left speaker
- Gray and gray/black – front right speaker
- Green and green/black – rear left speaker
- Purple and purple/black – rear right speaker
Verify each connection with a multimeter before final assembly. Confirming voltage and continuity ensures proper signal flow, prevents short circuits, and maintains balanced output across all channels. Label each wire for easier troubleshooting and future upgrades.
