Start by locating the main power input connections for your vehicle’s sound system. The positive terminal of the power supply should be securely attached to the power wire, while the ground wire must be properly grounded to prevent any electrical hazards. Check the voltage specifications to ensure compatibility with the components you are working with, as incorrect voltage can damage the system.
Next, focus on connecting the speakers. Each speaker has a pair of wires – positive and negative. Be sure to match the color coding for each connection, typically red for positive and black for negative. It’s important to ensure the wiring is clean and secure, as loose connections can lead to poor sound quality or failure of the audio system.
Finally, make sure to wire the antenna and any additional features, such as auxiliary inputs or USB ports. These components often require separate connections for proper operation. Follow the vehicle’s wiring schematic to ensure these parts are connected to the correct terminals for optimal performance. Once everything is connected, perform a test to verify the functionality of the entire system before final installation.
2003 Chevrolet Silverado Radio Wiring Guide
Begin by disconnecting the negative terminal from the vehicle’s battery to ensure safety during installation. Once the power source is disconnected, remove the existing unit by unscrewing the mounting screws and gently pulling it from the dashboard.

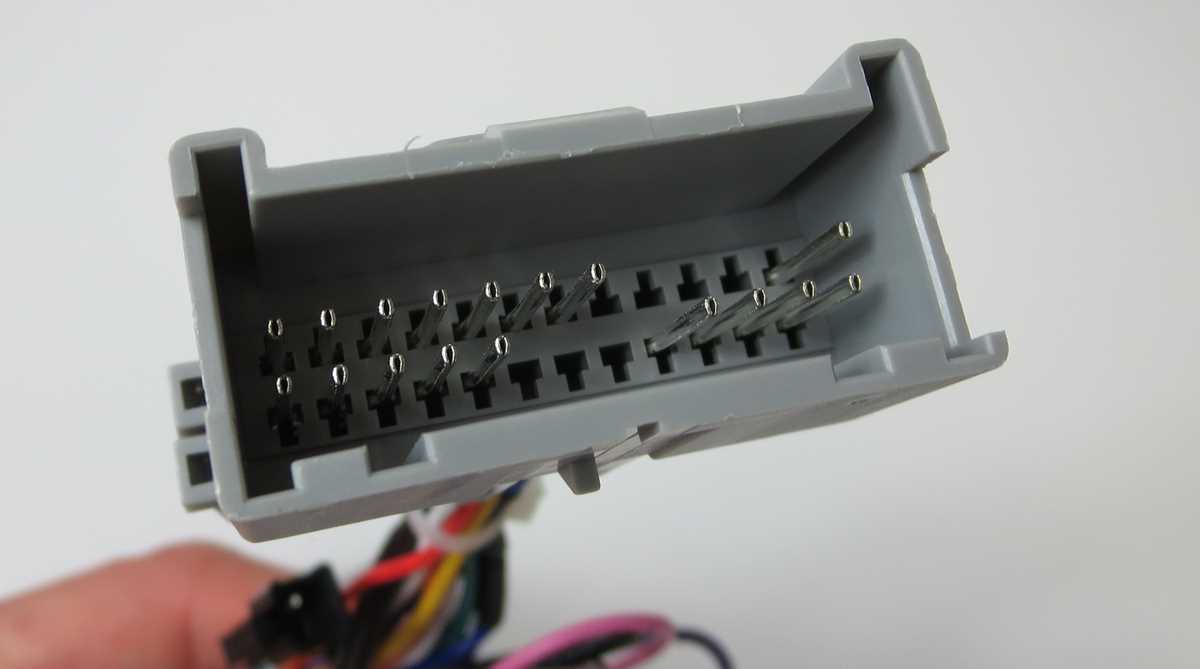

Locate the main harness connector that comes with the new unit. This connector will include the necessary power, ground, and speaker wires. Ensure that the power wire is connected to the correct terminal, typically marked as “B” or “12V,” to provide consistent power to the system.
Next, connect the ground wire securely to the vehicle’s chassis. This step is crucial to avoid electrical interference and ensure stable performance. Use a metal surface to ensure a solid connection, and verify that the wire is tightly fastened to prevent any loose connections during operation.
For the speakers, each speaker will have two wires – one for positive and one for negative. Typically, red corresponds to the positive terminal and black to the negative. Match the colors of the wires to the corresponding terminals on both the vehicle’s harness and the new unit. For better sound quality, ensure that no wires are exposed to prevent short circuits.
Finally, connect the antenna wire and any other auxiliary connections, such as USB or aux cables. Make sure these connections are secured tightly to their respective terminals. Once all wiring is completed, reconnect the battery and test the system to ensure all functions, including sound and auxiliary inputs, work correctly.
Identifying and Connecting the Power Wires for the Radio
To begin, locate the primary power wire, which is typically red. This wire is responsible for providing the 12V supply to the system. It should be connected to the constant power terminal of the head unit. You can verify this using a multimeter or by consulting the vehicle’s wiring guide for precise connections.
Next, identify the ignition wire, usually colored yellow or orange, which provides power when the vehicle is turned on. This wire ensures that the unit only receives power when the ignition is on, preventing battery drain when the vehicle is off. Connect this wire to the designated “ACC” or “ignition” terminal on the head unit for proper function.
Finally, secure the ground wire, typically black, to a solid, unpainted metal surface of the vehicle’s chassis. This is critical for ensuring a stable electrical connection and avoiding potential interference or electrical noise. A secure connection will prevent any issues related to power grounding and ensure the system functions smoothly.
