To wire a simple two-position switch, begin by identifying the two terminals on the switch: one for the input power and one for the output. The input wire should come from the power source, while the output wire directs the current to the device you wish to control. Make sure both wires are securely connected, ensuring there is no loose contact that might cause malfunction.
Next, select wires that are rated appropriately for the current and voltage of the system. It’s crucial to ensure the wire insulation is suitable for the environment in which the switch is being installed. If you are working with high-voltage systems, use thicker, well-insulated cables to reduce the risk of electrical hazards.
Once all connections are made, check the integrity of the circuit by using a multimeter to test for continuity and proper voltage. This ensures that the switch is functioning correctly and can handle the power load without any issues. If the system doesn’t respond as expected, double-check the wiring connections and inspect the switch for any defects or signs of damage.
2 Pin Toggle Switch Wiring Diagram

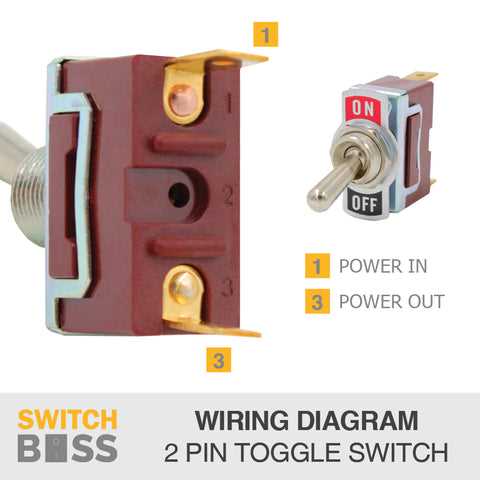

Begin by identifying the two terminals on the device. One terminal is for the incoming power, while the other is for the output. Ensure that the wires are securely attached, with no exposed strands that could lead to short circuits or potential hazards. Using proper insulation for the wires is important for safety and longevity.
The next step involves connecting the power source to the input terminal. The wire should be of an appropriate gauge, able to handle the required current without overheating. After connecting the power source, run the output wire to the device or equipment that will be controlled. It’s vital to verify that the connection is stable and secure to avoid any future malfunctions.
When selecting wires, ensure they are rated for the voltage and current that the system will handle. Use thicker wires for higher voltage or power applications, as thinner wires may overheat and cause failures. Always check the manufacturer’s recommendations for the correct wire size to prevent any issues during operation.
After making the connections, it’s crucial to test the setup. Use a multimeter to check the voltage at the output terminal when the control mechanism is in different positions. This test ensures the device is receiving the correct current and voltage to operate properly. If there are any discrepancies, double-check the connections and ensure no wires are loose or improperly connected.
Lastly, always install a fuse or circuit breaker in the system to protect against power surges or overloads. The fuse should be rated for the maximum current expected to flow through the circuit. This precaution will prevent damage to both the system and the connected equipment in case of electrical faults or excessive current draw.
Components Needed for Wiring a 2 Pin Toggle Switch
For this setup, the most basic component is the control mechanism itself. You’ll need a simple on/off switch that has two terminals for electrical connections. Along with this, ensure you have reliable connectors, such as wire nuts or terminal blocks, to secure the connections between the wires and the device. Using high-quality connectors prevents loose connections, which could lead to power failure.
Next, gather the appropriate cables for the project. The wire should be rated for the voltage and current of the system. Select the wire gauge according to the required power handling and the distances involved in the installation. Make sure to use insulated wire to prevent electrical shorts or accidental contact with conductive surfaces.
Lastly, ensure you have a multimeter or continuity tester for verifying connections after the setup. This will help you check the voltage and continuity at the terminals to ensure everything is functioning as intended. Additionally, it’s a good idea to have circuit protection devices such as fuses or breakers to safeguard against power surges and overloads during operation.
