Use high-quality speaker cables rated for low resistance to ensure stable signal transfer and prevent power loss. A 2 resistance load requires a minimum of 12-gauge wire for runs up to 10 feet, while longer distances demand 10-gauge cables to maintain clarity and volume.
Secure all terminal connections firmly to avoid intermittent contact and overheating. Loose connectors can cause distortion and potential damage to the subwoofer coil, reducing performance and reliability.
Maintain correct polarity by matching the positive and negative terminals of the power source and the subwoofer. Reversing connections may lead to phase cancellation, diminishing bass response and overall sound quality.
Check insulation and routing of cables to prevent short circuits. Avoid sharp bends, pinched wires, and proximity to high-current automotive components that can induce interference or degrade signal transmission.
Test the system under low volume first to verify proper operation before increasing output. Monitor the subwoofer temperature and amplifier load to ensure the installation handles the intended power without stressing components.

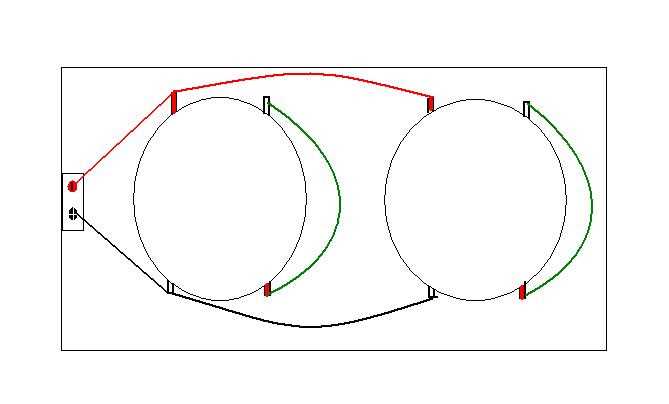

2 Resistance Subwoofer Connection Guide
Use a dual-conductor speaker cable rated for low resistance to maintain full power transfer. Connect the positive terminal of the subwoofer to the amplifier’s output labeled with a plus sign and the negative to the corresponding minus terminal. For multiple subwoofers, series connections increase load stability while parallel connections require attention to total resistance to prevent overloading the amplifier.
Ensure all terminals are tightened and free from corrosion. Loose connections or oxidized contacts can cause distortion and uneven performance. Route cables away from high-current sources and sharp edges to minimize interference, and verify correct polarity with a multimeter before running at full volume to protect both the subwoofer and the amplifier from damage.
Choosing the Correct Cable Gauge for Low-Resistance Load
Select a copper conductor with sufficient thickness to handle high current without excessive voltage drop. For runs under 10 feet, 12-gauge wire maintains stable power delivery. Longer distances require 10-gauge to prevent overheating and maintain consistent output.
Insulation type matters. Use cables rated for automotive or high-current applications to resist heat and abrasion. Avoid thin speaker cables that can melt or increase resistance, leading to audible loss in performance and potential amplifier strain.
Consider parallel or series connections carefully. When linking multiple units, calculate total load and adjust cable gauge to handle combined current. Parallel arrangements increase current demands, so increasing wire thickness avoids unnecessary resistance and power loss.
Check connections and routing. Keep cable lengths minimal and avoid sharp bends or proximity to power lines to reduce interference. Secure terminals and test with a multimeter for voltage consistency before high-volume operation to ensure safe and reliable performance.
