Verify all harness connections before applying power to prevent shorts or blown fuses. Red leads usually carry switched 12V, yellow provides constant battery power, and black serves as the chassis ground. Test each line with a multimeter to confirm voltage and continuity before completing installation.
Use high-quality crimp terminals or soldered joints for all signal and power leads. Cover connections with heat-shrink tubing or insulated connectors to protect against vibration, corrosion, and accidental contact with the metal frame.
Check each speaker channel individually after securing all connections. Begin with low volume, verify left and right front and rear outputs, and ensure all signals are clean without distortion. This approach prevents damage to amplifiers and speakers while confirming accurate audio routing.
Truck Audio Layout with Connector and Wire Color Guide

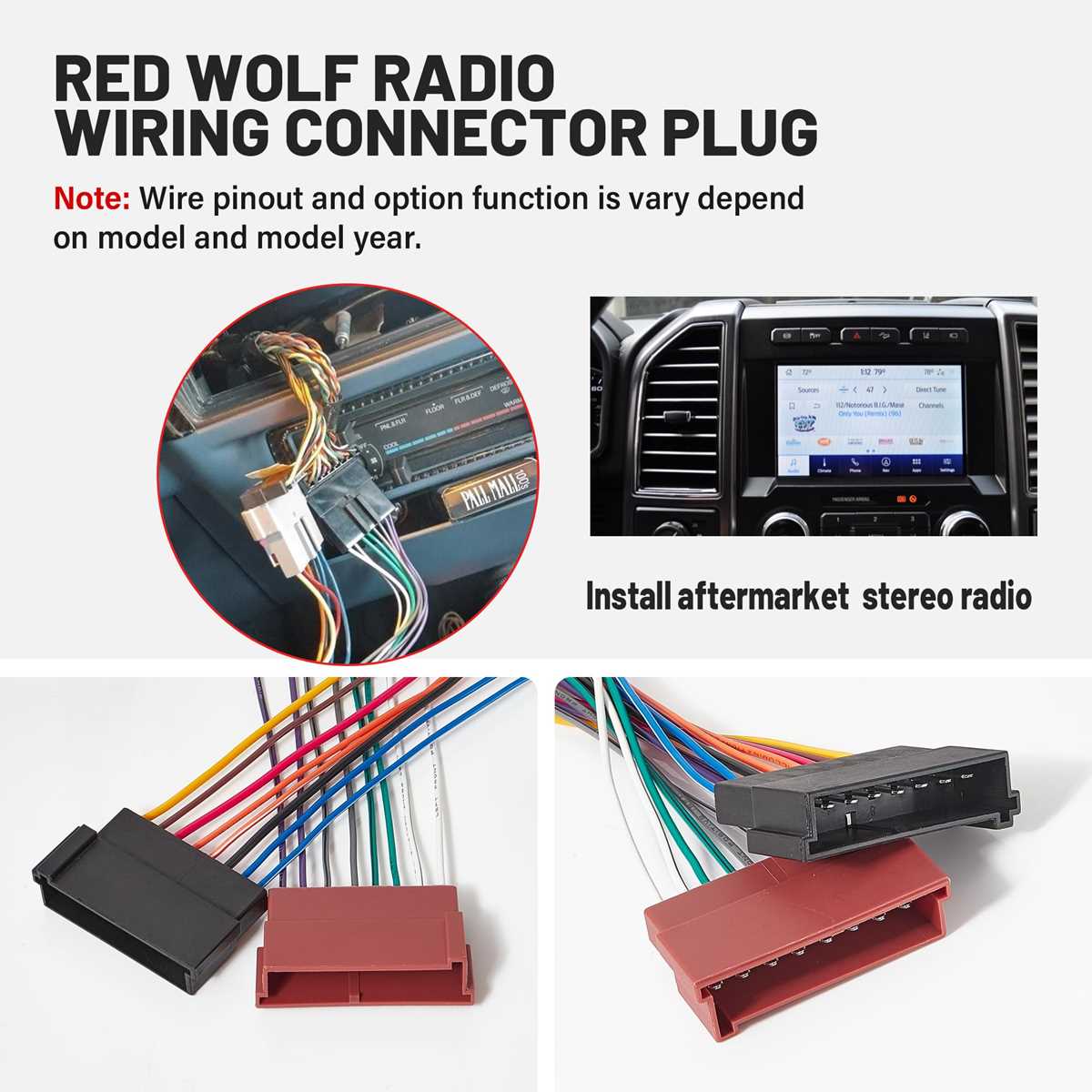

Match each factory harness lead to the corresponding aftermarket connection using the color code to avoid misrouting signals. Typical assignments include:
- Red: switched 12V ignition power
- Yellow: constant 12V battery
- Black: chassis ground
- White/Gray: front left/right speaker positive
- White/Gray stripe: front left/right speaker negative
- Green/Purple: rear left/right speaker positive
- Green/Purple stripe: rear left/right speaker negative
Use insulated connectors or solder with heat-shrink tubing to maintain secure, vibration-resistant connections. Keep leads short and routed away from sharp edges to prevent abrasion and signal loss.
Verify each channel individually before final assembly. Connect one speaker at a time, power on the system at low volume, and confirm proper output and polarity. Adjust connections as needed to ensure clean, balanced sound and prevent damage to amplifiers or speakers.
Identifying Factory Wire Colors and Connector Pins
Start by labeling each harness lead with its color and intended function before disconnecting the factory head unit. Red wires provide switched 12V power for ignition, yellow wires supply constant battery voltage, and black wires serve as ground. Confirm each lead with a multimeter to avoid errors during installation.
Front speaker connections are typically white and gray, with solid colors representing positive terminals and striped counterparts representing negative terminals. Rear speaker leads usually use green and purple pairs, following the same solid-to-striped convention for polarity.
Inspect each connector pin for corrosion or bent terminals. Clean contacts with electrical contact cleaner and straighten any pins carefully to ensure reliable connection with aftermarket components. Damaged pins can lead to intermittent sound or complete signal loss.
Use a pinout chart specific to the vehicle harness to verify each lead. Confirm which pins control illumination, mute, or amplifier turn-on signals. Testing these lines with a low-current test light or multimeter prevents accidental shorts that could damage the head unit or onboard electronics.
After identifying all leads and pins, bundle and secure them with zip ties or split loom tubing. Keep speaker pairs together and route power lines separately to minimize interference. This organization simplifies installation and ensures long-term reliability of the audio system.
