Trace each electrical line from the fuse box before replacing any component. This classic rear-engine German compact uses a simple 12-volt electrical layout where most circuits pass through a central fuse block mounted behind the dashboard. Identifying conductor colors and their destinations helps locate faults such as dead headlights, weak charging output, or non-working dashboard indicators.
The electrical layout used in this early seventies air-cooled sedan includes 10 fuse positions that distribute power to lighting, horn, wipers, and interior electronics. Headlamp circuits normally use yellow and white conductors, parking lamps often use gray with colored stripes, while ignition and charging lines frequently appear in black or red. Recognizing these color patterns allows faster tracing without dismantling large sections of the harness.
Power originates at the battery mounted under the rear seat and travels forward through the main harness channel along the chassis tunnel. From there it reaches the dashboard fuse block and splits toward lighting systems, dashboard instruments, and accessory devices. The alternator and regulator send charging current back to the battery through a dedicated heavy conductor routed through the engine compartment.
Accurate connection mapping prevents misrouted cables during restoration work. Label each conductor while inspecting the harness, confirm continuity with a multimeter, and compare terminal numbers stamped on switches and relays. This approach helps maintain correct operation of the charging system, lighting circuits, starter control, and dashboard electronics in this air-cooled vehicle platform.
1970 Volkswagen Beetle Wiring Diagram With Color Codes and Electrical Layout
Identify conductor colors at the fuse block before tracing any electrical line across the vehicle. The classic air-cooled compact from the early seventies uses a 12-volt electrical system with a central fuse block behind the dashboard distributing power to lighting, horn, wipers, and interior instruments. Each fuse protects a specific branch that extends through the main harness running along the chassis tunnel.
Color identification simplifies tracing individual circuits. Headlamp power usually appears as yellow for low beam and white for high beam. Parking lights often use gray conductors with colored stripes, while ignition-related lines commonly appear in black. Battery supply and charging lines normally appear in red, connecting the rear battery compartment to the front fuse block and dashboard electronics.

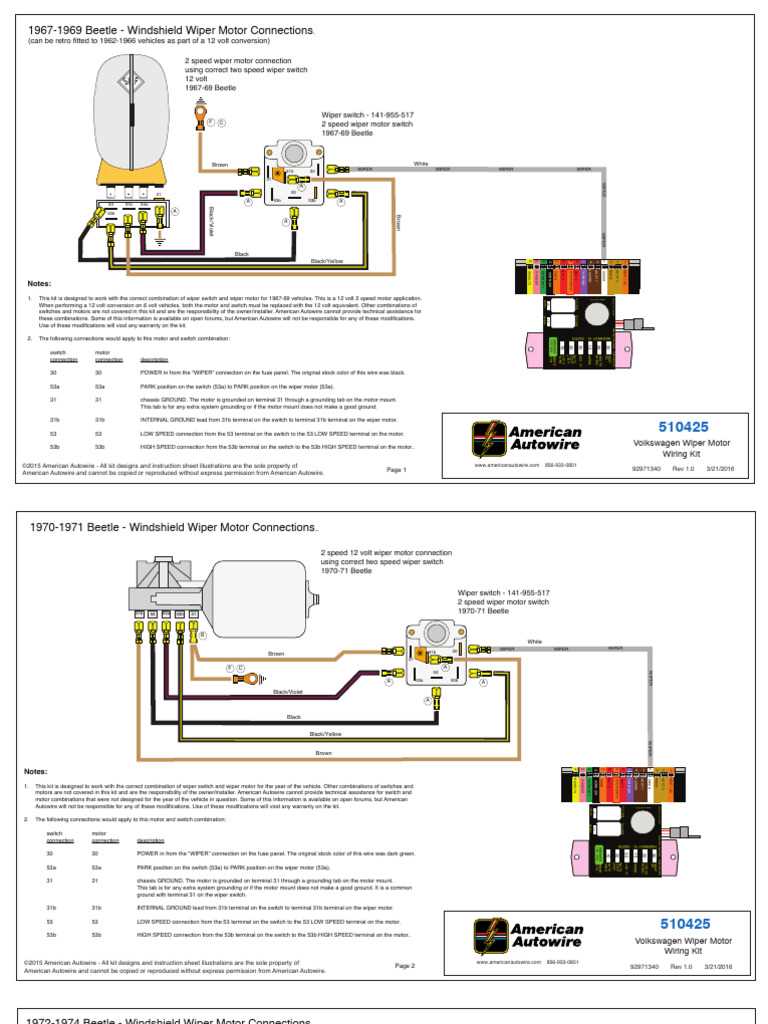

Power distribution begins at the battery mounted beneath the rear seat. A heavy positive cable routes current forward through the main harness channel toward the fuse block. From there, separate conductors feed lighting circuits, instrument illumination, windshield wiper motor, and accessory devices. Ground returns typically attach to body mounting points throughout the chassis.
Main Electrical Sections
The electrical layout divides the system into several groups.
Lighting circuits supply headlights, tail lamps, and indicators.
Starting and charging components include the starter motor, alternator or generator, and voltage regulator.
Dashboard electronics operate gauges, warning lamps, and interior lighting.
During restoration or troubleshooting, confirm continuity with a multimeter before replacing components. Inspect insulation along the main harness channel and near the engine compartment where heat exposure occurs. Clear labeling of each conductor and correct placement at fuse terminals helps maintain stable operation of lights, charging equipment, and starting components.

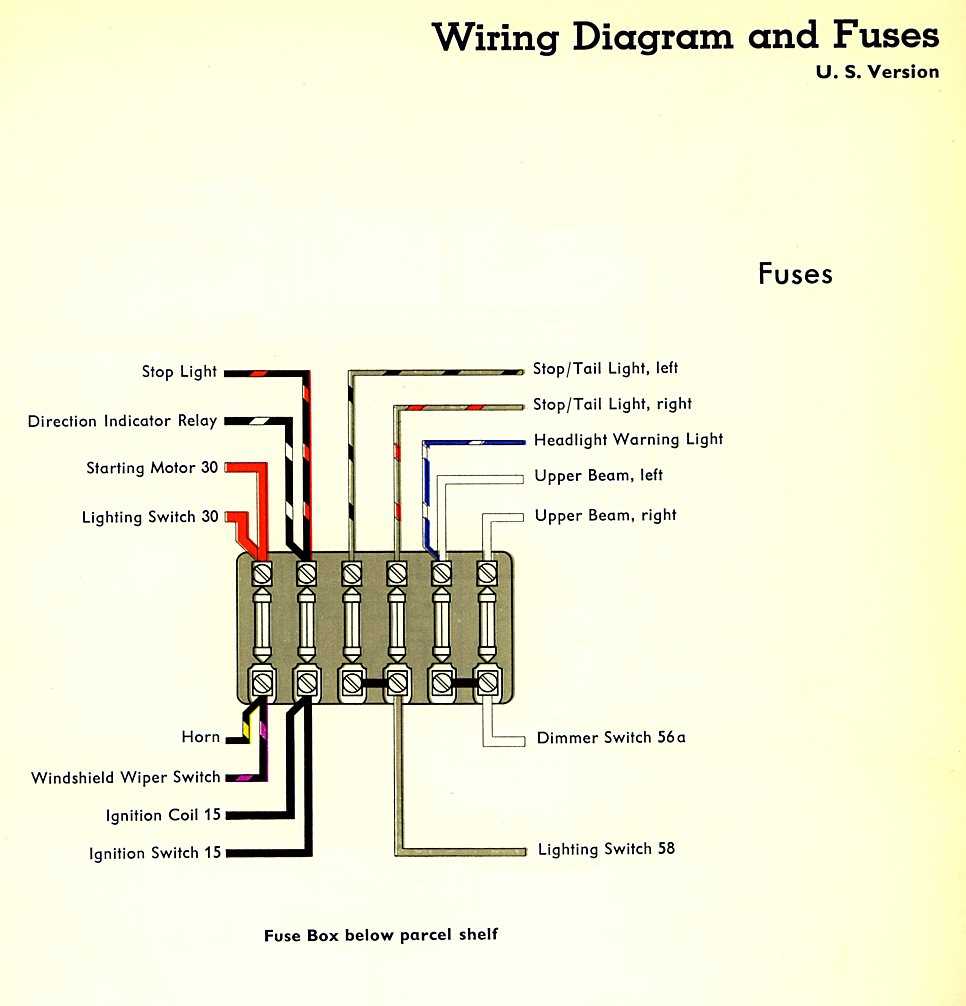

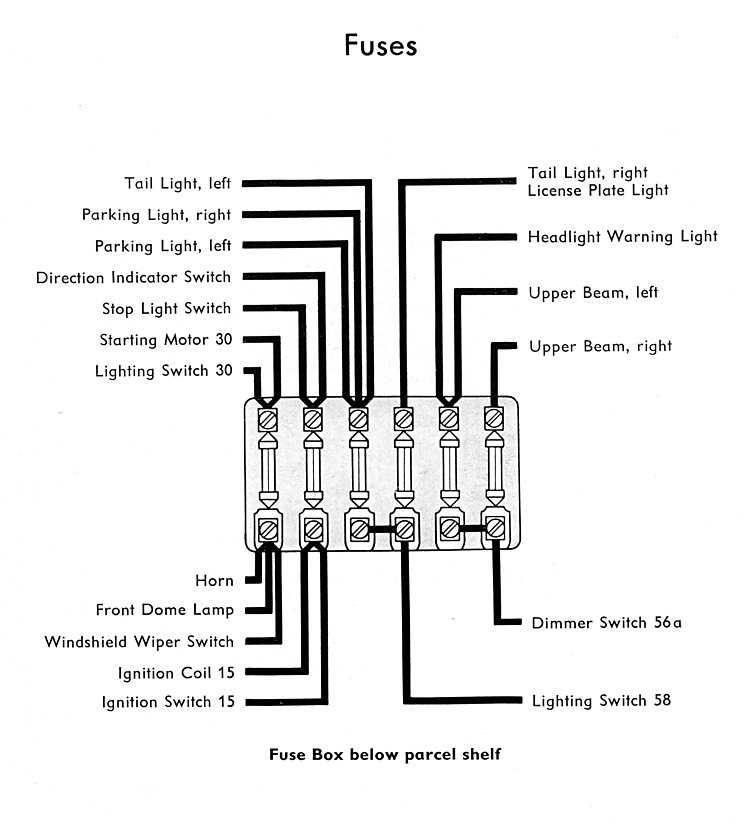

Fuse Box Layout and Wire Color Identification in the 1970 Volkswagen Beetle
Inspect the fuse block behind the dashboard and match each conductor color to its fuse position before tracing any electrical line. This air-cooled German compact uses a 10-position fuse block that distributes battery power to lighting, horn, windshield wipers, and dashboard devices. Each fuse protects a separate branch of the electrical harness.
The fuse block is arranged in two rows with metal clips holding ceramic fuses rated between 8 A and 16 A. Power from the battery reaches the left side of several fuse terminals, while the opposite side feeds individual components through color-coded conductors. Checking both sides with a multimeter quickly reveals whether current passes through the fuse element.
Color identification helps locate each circuit without removing the entire harness.
- Red usually carries battery supply from the rear battery compartment
- Black commonly feeds ignition related components
- Yellow connects to low beam headlamps
- White connects to high beam headlamps
- Gray with stripes feeds parking and tail lamps
- Brown serves as chassis ground
Confirm conductor routing visually along the harness channel running through the center tunnel and under the dashboard. If insulation color has faded, use a continuity test from the fuse terminal to the component connector. Accurate identification keeps lighting systems, dashboard indicators, and accessories operating without misrouted connections.
