Building a 12v Spot Welder with Wiring Layout and Key Components

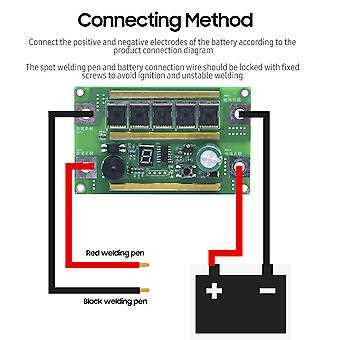

12v spot welder circuit diagram

Check the main power rails before connecting the load. Ensure stable voltage delivery and minimal resistance in the input lines to prevent sparks and uneven fusing.

Verify switch and relay functionality along the conduction path. Faulty components can cause interrupted pulses and incomplete bonding of metal sheets.

Inspect thick copper traces for corrosion or loosened joints. Maintaining solid contact reduces heat loss and ensures consistent current flow during each weld.

Measure pulse timing and duration for the control module. Adjust settings to match material thickness and avoid overheating or burn-through at contact points.

Check thermal protection elements integrated within the frame. Accurate positioning prevents overheating and safeguards the power module during repeated operations.

Low Voltage Welding Unit Layout

Verify all power rails before operation to ensure even current distribution. Check thick copper connections and main switching devices for solid contact, reducing heat loss and maintaining stable pulse delivery.

Trace control signal paths from the timing module to the load terminals. Ensure relays and MOSFETs switch precisely with minimal delay, as inconsistent conduction can lead to weak fusing or burn-through on thin metal sheets.

Identifying Power Supply and Switching Components

Measure input voltage stability at the main terminals. Voltage fluctuations above 0.2 volts can disrupt pulse strength and lead to incomplete fusing on thin sheets.

Examine MOSFETs and relays along the conduction path. Check gate drive levels and coil resistance to confirm devices switch fully and avoid partial current flow.

Inspect filtering elements mounted on power rails:

  • Electrolytic capacitors to smooth voltage ripple
  • Ferrite chokes or inductors to control current spikes
  • Shunt resistors for monitoring load current

Trace control connections from the timing module to each switching element. Continuity and correct orientation ensure pulses occur at precise intervals without misfires.

Test thermal safety components such as PTC thermistors or fuse links. Ensure rapid response to overcurrent or overheating to prevent damage to the power delivery system and attached modules.
