Identify the hot, neutral, and ground wires before making any connections. Use a voltage tester to confirm the live line and verify continuity on the neutral and ground paths. Mark each conductor to avoid cross connections and reduce the risk of short circuits.
Strip insulation carefully to expose about half an inch of conductor for terminal attachment. Tin copper strands with a light layer of solder if the wire is stranded to prevent fraying and improve contact with screws or clamps.
Secure each wire under the correct terminal screw with firm, clockwise pressure. Double-check tightness to prevent overheating from loose connections, and ensure the ground wire is attached to the green terminal or chassis point for proper safety grounding.
Inspect the assembly visually to confirm no bare conductors are exposed beyond the terminals. Test continuity with a multimeter to verify each path and check for accidental shorts before plugging into a live outlet.

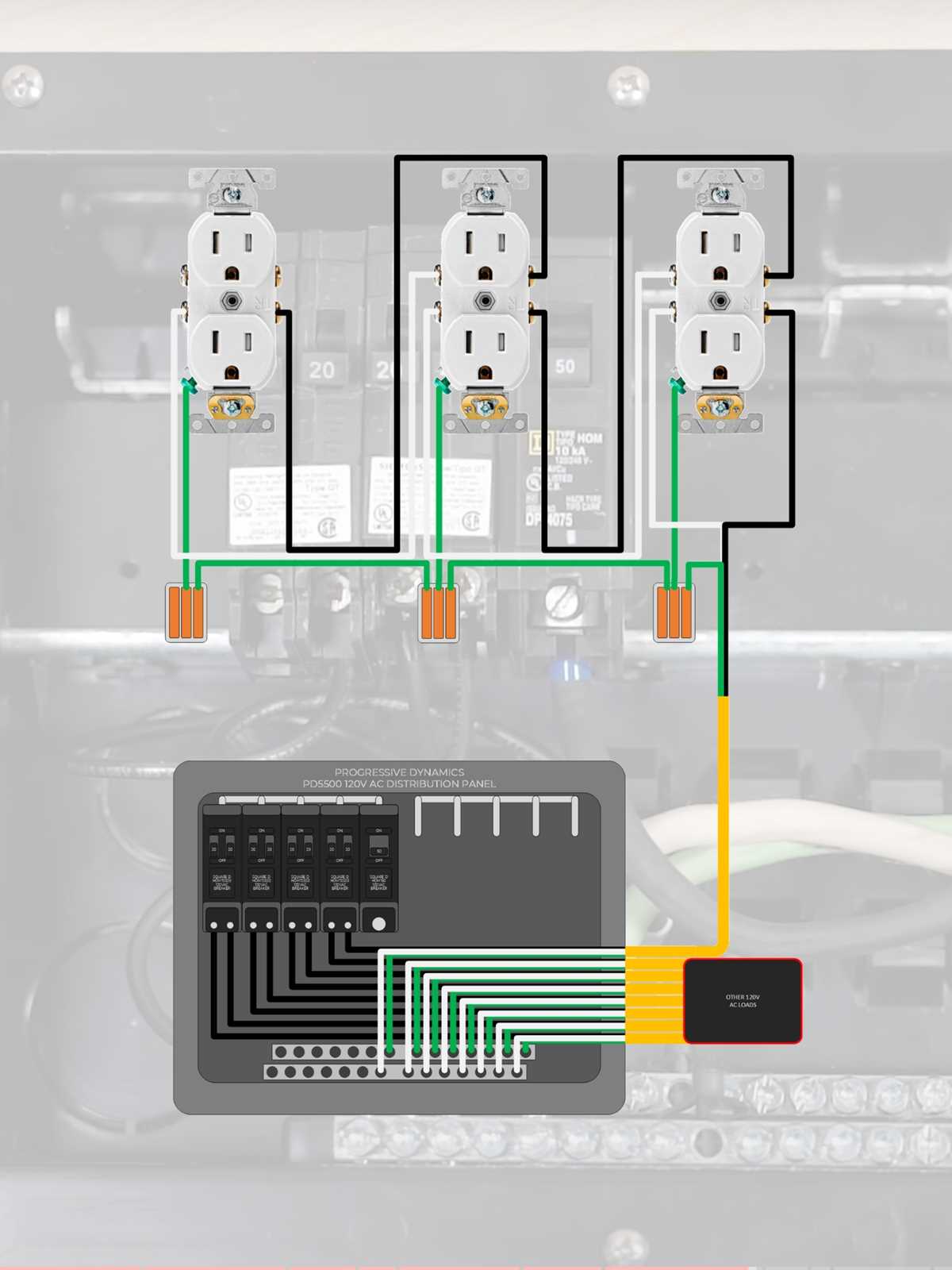

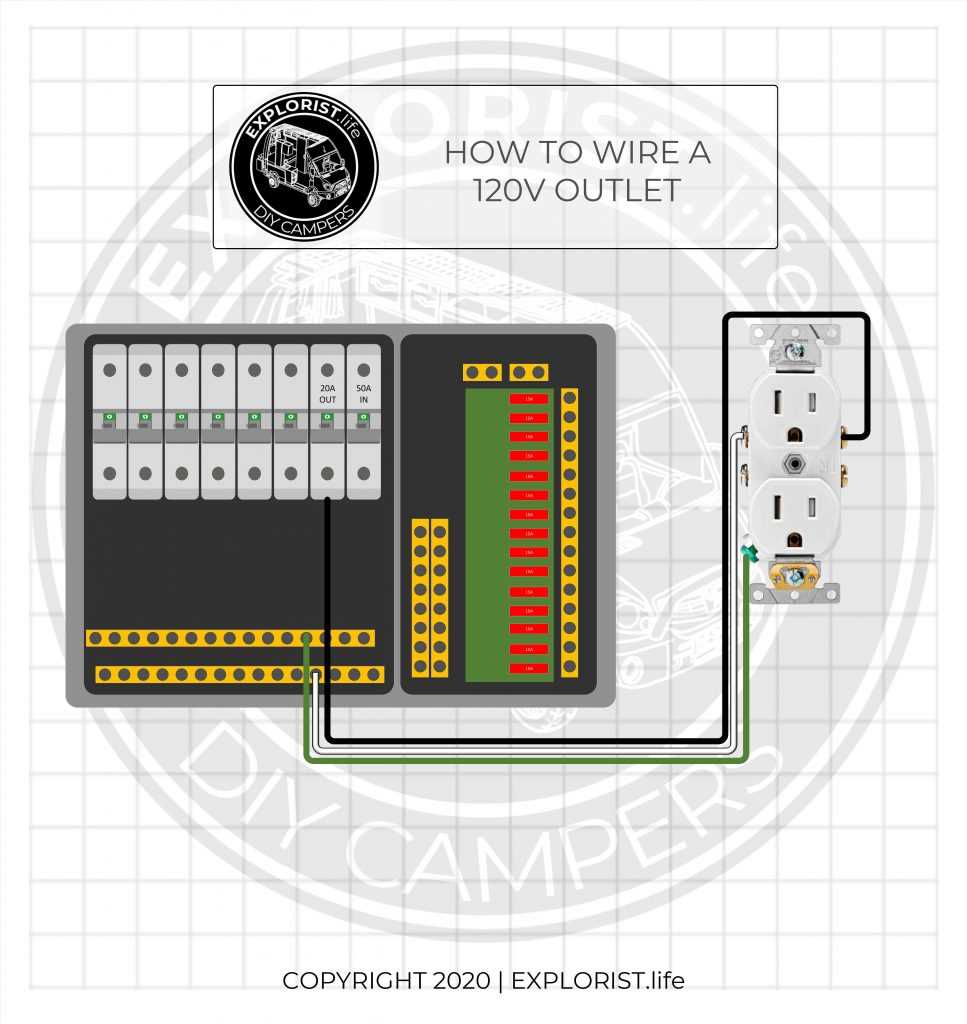

120v Plug Wiring Guide
Confirm conductor identity by testing the live, neutral, and ground lines with a voltage detector. Label each wire to prevent accidental cross-connections that could cause short circuits or shocks.
Preparing Conductors
Strip approximately half an inch of insulation from each wire. For stranded wires, twist strands tightly and apply a light layer of solder to maintain integrity and ensure a solid connection with terminal screws or clamps.
Attach each wire to the correct terminal using firm clockwise pressure. Check that screws are tight and that no copper strands protrude, which could create unintended contact points and hazards.
Safety Checks and Testing
Inspect the assembly to verify that no bare metal is exposed. Use a multimeter to measure continuity between the live, neutral, and ground points. Confirm there are no shorts before energizing the connection.
Once connected, secure the enclosure cover and avoid pinching conductors. Perform a final continuity and polarity test to ensure the assembly operates safely under load and maintains proper grounding.
Identifying Hot Neutral and Ground Wires
Use a voltage tester to determine which conductor carries the live current. Touch the probe carefully to each wire while keeping the tester grounded to confirm which line is energized. This prevents accidental connection of live and neutral paths.
Check the color coding of conductors.
- Black or red typically indicates the live line
- White usually marks the neutral path
- Green or bare copper designates the ground
Verify with a meter to ensure accuracy, as paint or insulation can sometimes obscure standard colors.
Test continuity between the ground wire and a known metal chassis or grounding point. Ensure low resistance for a proper safety path. This step helps confirm that the protective conductor will carry fault currents safely without risking shock or fire.
Label each wire with tape or markers once identified. Maintain separation of live, neutral, and ground lines during assembly to avoid accidental shorts. Regularly recheck identification if components are moved or handled multiple times before final connection.
