Before starting, make sure you have the correct power supply for your system. Check the electrical specifications of the motor and control unit to ensure they match the system’s requirements. The power source should provide a stable current that matches the pump’s operating needs to avoid overheating or malfunctions.
Use thick enough cables for the connections. A typical 10-12 gauge wire will be sufficient for most low- and medium-power systems, but verify the current rating of your components. Thinner cables may cause voltage drop or lead to heat buildup, potentially damaging the system over time.
Next, securely connect the terminals from the power source to the control unit and motor. Ensure the polarity is correct: the positive connection should be linked to the positive terminal, and negative to negative. Check that all connectors are tight to avoid any power loss or short circuits.
For troubleshooting, if you notice irregular behavior, check the connections for any loose wires or faulty components. Also, inspect for any blockages in the system that could prevent smooth operation. Proper maintenance of these parts is key to longevity and efficient performance.

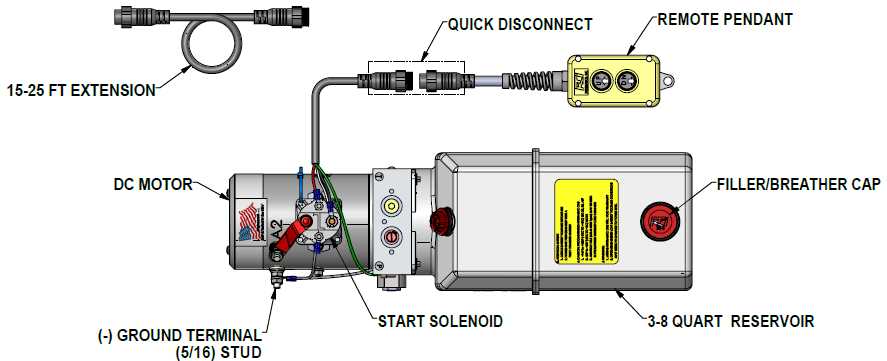

12 Volt Single Acting Hydraulic Pump Wiring Guide
Start by selecting the correct power supply for your system. The electrical output should match the pump’s voltage and current requirements. This ensures safe operation and avoids damage from overloading the components.
Step 1: Preparing the Power Supply and Components
For a stable connection, use wires with a proper gauge to handle the current. Typically, 12 or 14 AWG wires are sufficient for most systems. Ensure your power source is capable of providing the required current without causing voltage drops that could affect the pump’s performance.

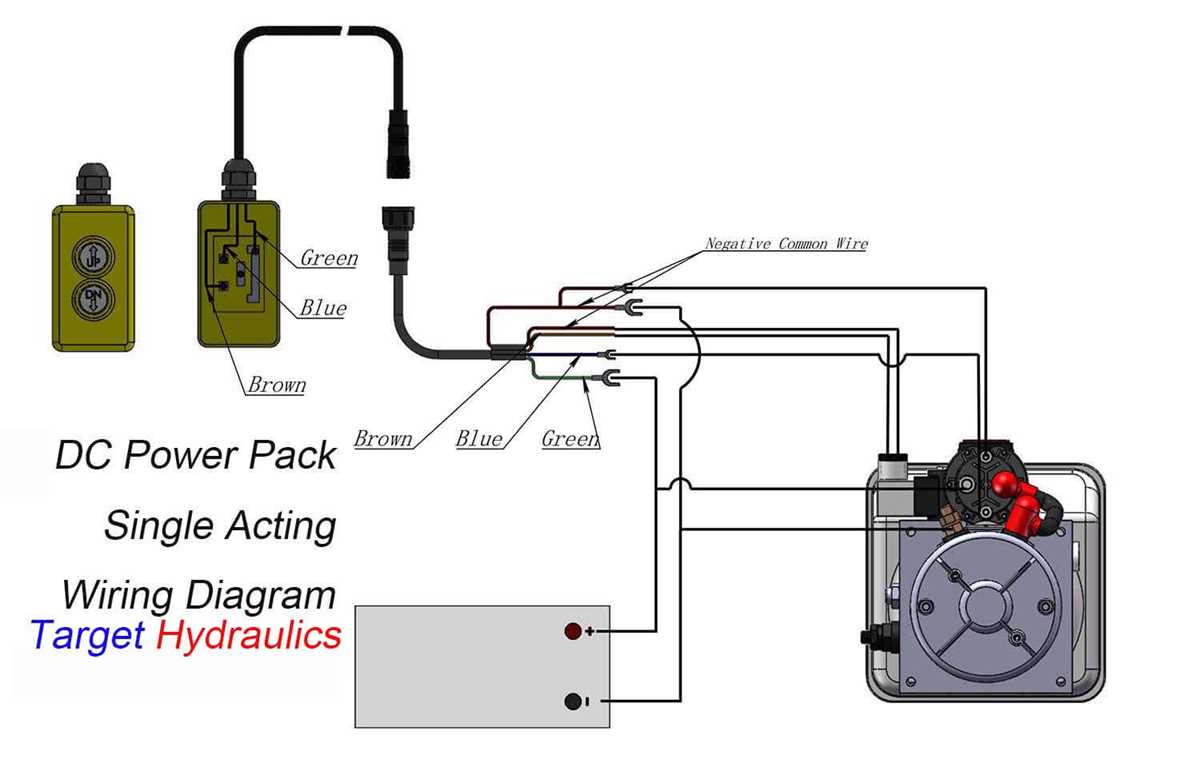

Step 2: Connecting the Control Unit and Motor
Connect the positive terminal from the power supply to the positive input of the control unit. Then, link the control unit’s output to the positive terminal of the motor. The negative terminal of the motor should connect back to the power supply’s negative terminal. Tighten the terminals securely to prevent any loose connections that may lead to shorts or power loss.
Verify that all the connections are clean and free of corrosion, as poor connections can affect the overall efficiency. Use quality connectors to ensure a firm and reliable fit between the components. A proper ground connection is also critical for safety and optimal operation.
Finally, after making all connections, power up the system at a low setting. Check for correct motor rotation and smooth operation. If you notice irregularities, inspect all wiring for faults or potential short circuits, and recheck the power supply’s stability to ensure there are no fluctuations in current.
Choosing the Right Components for 12 Volt Hydraulic Pump Setup
Ensure you select a motor that matches the power and current needs of your system. The motor should be rated for the voltage and current your components require. Check the manufacturer’s specifications to verify the motor can handle continuous operation at the expected load without overheating.
The control unit plays a key role in regulating the motor. Choose a controller that allows for smooth operation and provides clear input-output connections. The switch or relay used for activating the motor should match the current requirements of the system, ideally rated for at least 10-15% higher than the motor’s peak draw.
For wiring, use high-quality insulated cables with the correct gauge to minimize power loss and prevent overheating. A 12 AWG wire is typically suitable for most systems, but check the specific power ratings for your components to determine if a thicker gauge is needed. Also, include a fuse or circuit breaker rated slightly higher than the motor’s peak current to protect against potential overloads.
